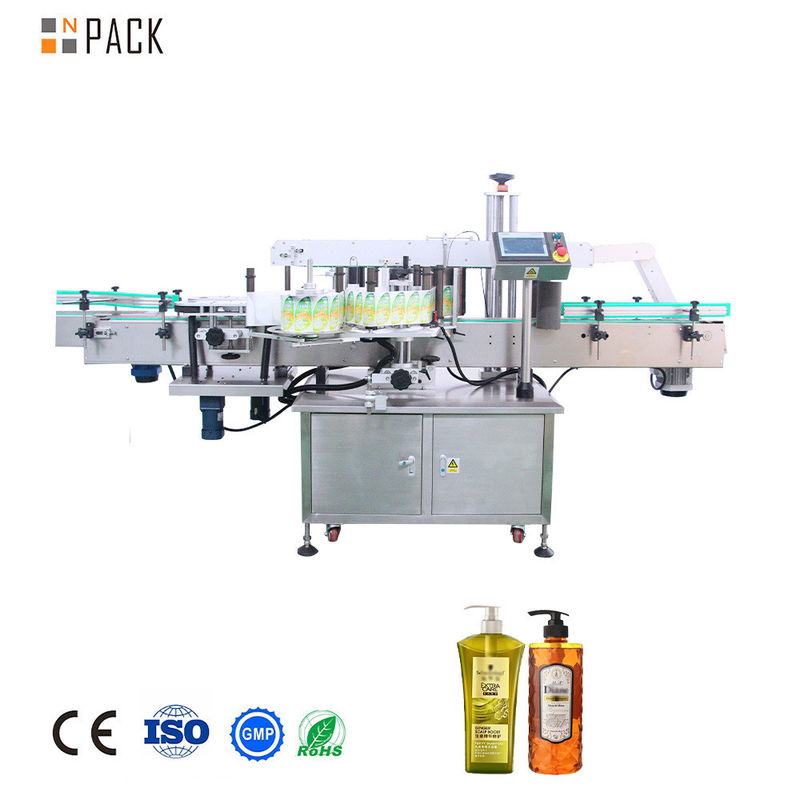

Automatic Square Plastic Bottle Labeling Machine
The Square Plastic Bottle Labeling Machine is designed for accurate, efficient labeling of square plastic bottles in various sizes. Using a conveyor and advanced pneumatic technology, it ensures precise label placement with minimal waste.
Equipped with an OCR system, it verifies and prints batch numbers or codes, supporting speeds up to 200 bottles per minute for high-volume production.
Compatible with plastics like LDPE, PP, PET, and HDPE, it suits industries such as food, cosmetics, pharmaceuticals, and household chemicals.
Built for durability and low maintenance, this machine offers a cost-effective, user-friendly solution to automate labeling of square plastic bottles.
Key Features
1.The machine features automatic detection of both sticker and label sizes, alerting the operator if any irregularities are found.
2.Its touchscreen stores up to 20 sets of parameter formulas, allowing quick recall of previous settings without adjustment, boosting efficiency.
3.With a "no bottle, no label" function, it prevents labeling errors such as applying labels without bottles or on upside-down containers.
4.An optional code printing feature can be added during automatic operation for enhanced product labeling and traceability.
Parameter
| Labeling Speed (pcs/min) |
120-200(relate to material and label size) |
| Labeling Accuracy (mm) |
±1.0mm(material and label sizes are not counted in) |
| Label Size (mm) |
(L)10-300mm(H)10-250mm |
| Material Size(mm) |
Φ20-φ120mm(H)40-400mm |
| Roll Inside Diameter (mm) |
φ76mm |
| Roll Outside Diameter (mm) |
Max:Φ320mm |
| Machine Size(mm) |
(L)2800*(W)1400*(H)1400(mm) |
| Power Supply |
AC220V50Hz/60Hz1500W(Can be customized ) |
Product Detail
Workflow :
Inbottle → Calibration → Sticker Application → Stabilization → Finished Product
When a bottle enters the labeling machine, it is first aligned by the calibration mechanism to ensure correct positioning. Next, the stabilization system holds the bottle firmly to prevent shaking during movement. Upon reaching the labeling station, a sensor triggers the label application. The machine then smoothly applies labels on both sides as the bottle moves forward, efficiently completing the labeling process.
After-sales Service
1.Installation:
Our expert technicians will visit your site to install the labeling machine. The service includes installation, travel, meals, and related expenses.
2.Training:
We provide on-site or factory training for dealers, operators, and technicians to ensure proper and efficient machine operation.
3.Warranty:
A one-year warranty covers the labeling machine, with prompt support for parts replacement and troubleshooting to keep your equipment running smoothly.
4.Consultation Service:
Enjoy free consultation from our experienced sales team, including assistance in selecting the best solution and detailed CAD drawings for your setup.
5.Technical Support:
Our technical support team is available 24/7 via email or phone to offer fast, reliable help and minimize downtime.
6.Spare Parts:
To protect against shipping damage, we provide essential spare parts free of charge. Additional high-quality parts can be ordered as needed to maintain optimal machine performance.
